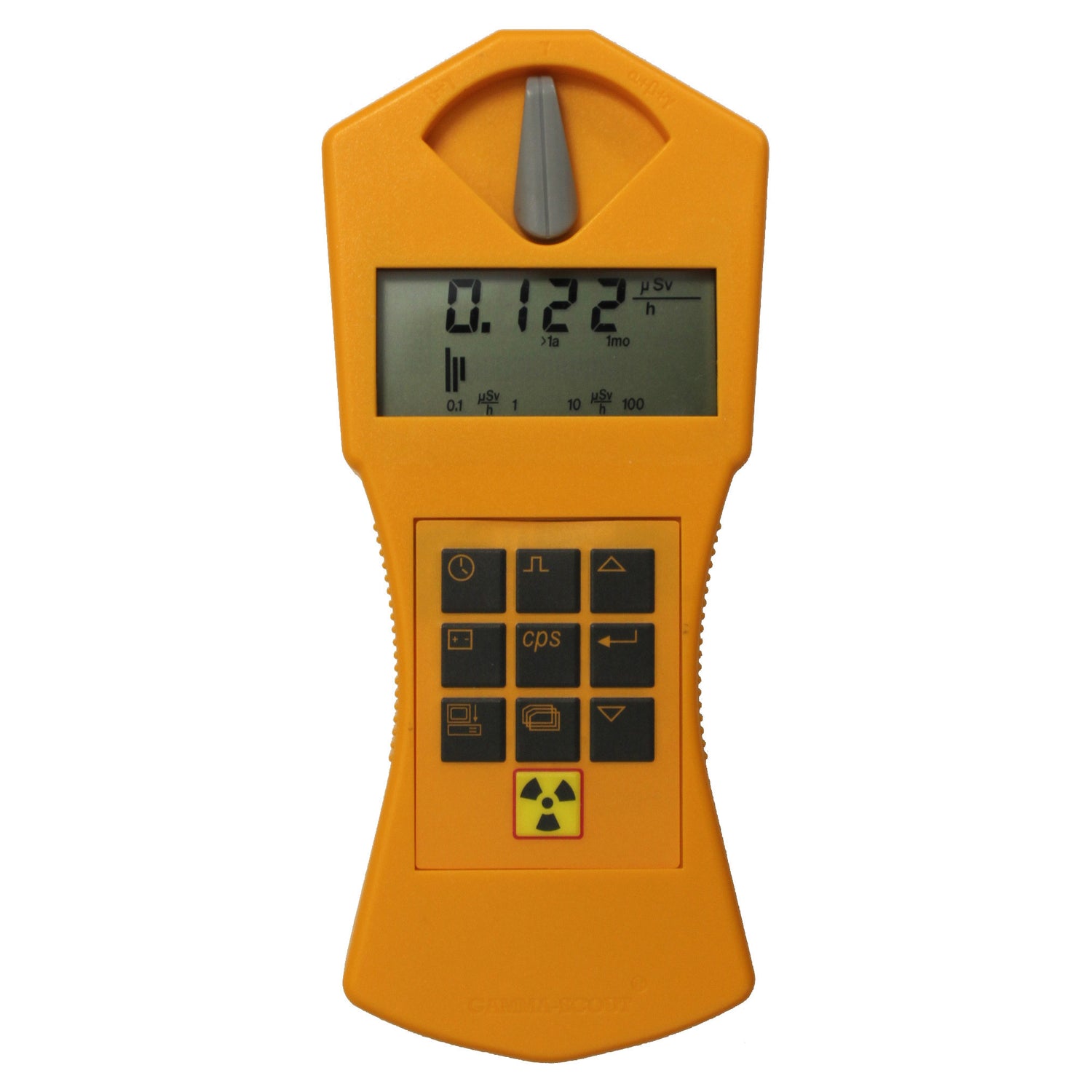

Gamma-Scout Hand-Held Geiger Counters
The Gamma-Scout hand-held radiation detector or geiger counter is a general purpose survey meter for measuring and detecting ionizing radiation. It can detect alpha, beta, gamma and x-ray radiation. There are four models that we sell: Standard, Alert, Online and Rechargeable. The features of all the models are highlighted in the data sheet section below. You can use the Gamma-Scout to:
- Determine the source of radiation leakages
- Monitor ambient radiation anomalies
- Monitor personal cumulative dose exposure
- Detect radioactive elements in metal scrap
- Check rocks from the earth for radioactivity
- Teach or learn about radioactivity
Customer Endorsements
-
"I love the download feature because we need complete documentation of our security inspections ..."
Ute Cornelius, Stade, Germany -
"Thank you for building such a useful product ... it helps our company very much ..."
Jose Puiros, La Paz, Bolivia -
"...my students are using the Gamma-Scout to learn about nuclear fission..."
Hans Schuster, Perth, Australia -
"We screen all our steel scrap with the Gamma-Scout...working perfectly..."
Vikesh Kumar, Bangalore, India -
"Best Buy...This showy yet shockproof unit packs a load of features in a 6-ounce package..."
Wired Magazine, Issue 11.07
Gamma-Scout Pricing
Our hand-held geiger counters offer a comprehensive set of functionality and performance for the price. With each order, you get our hand-held radiation detector, a USB cable to connect to a computer to download measurements, the user guide and a CD with the data download software. An optional leather case with belt strap can be purchased as well. Our devices come with a 14-day money-back guarantee and a 2-year manufacturer's warranty. Place an order now.
STANDARD MODEL
ALERT MODEL
RECHARGEABLE MODEL
ONLINE MODEL
Gamma-Scout Data Sheet
The Gamma-Scout data sheet below has a comprehensive list of all the Gamma-Scout model features. The last column shows each model's compatibility with the feature in that row. A green icon means that the model has the feature and grey means it does not.
= Standard Model
= Alert Model
= Rechargeable Model
= Online Model
| Feature | Feature Details | Model Compatibility |
|---|---|---|
| Specifications as of June 2011. Specifications can change at any time. |
||
| Sensor Type | Halogen filled Geiger-Müller tube with mica end window [LND 712 or equivalent] | |
| Sensor End Window Density | End Window Density 1.5 - 2 mg/cm² | |
| Sensor Housing | Stainless-steel housing (0.012" wall thickness) | |
| Sensor Dimensions | Measuring Length 38.1mm, measuring diameter 9.1mm | |
| Sensor Zero Rate | Zero Rate < 10 pulses per min w/ 3 mm AL and 50 mm PB screening | |
| Operating Range | Calibrated scale 0.01 µSv/h up to 1000.00 µSv/h or 1µR/h to 100mR/h | |
| Gamma Sensitivity | 1000 cpm/mR/hr or 108 pulses referenced to Co-60 radiation of 1 µSv/h ambient | |
| Minimal Alpha Detection | Detects alpha radiation from 4 MeV | |
| Minimal Beta Detection | Detects beta radiation from 0.2 MeV | |
| Minimal Gamma Detection | Detects gamma radiation from 30 keV | |
| Memory | Internal storage for 32,000 data points | |
| Operating Temp. and Humidity | -40 to +75°C, up to 90% humidity | |
| Dimensions and Weight | L 6.5" (165mm), W 2.8" (72mm), H 1.2" (30mm). 6 ounces (130 grms) | |
| Casing | Impact-resistant Novadur | |
| Display | Real time LCD display, 4 digit numeric with operating mode indicators. Logarithmic bar chart. | |
| Calibration | Each unit is subjected to a final test supervised by the Institute of Radiation Protection, a government (German) controlled university for Applied Technology. The tested device must be in a confidence range of 5% in comparison to a master. This master is adjusted to a gauged reference Cs-137 emitter. Each unit gets a serialized test certificate. | |
| Selective Shielding | Shield the sensor's mica window from alpha (to allow beta and gamma only) or from alpha and beta (to allow gamma only). | |
| Power Consumption | Power circuit consumes less than 10 microamperes at environmental radiation. | |
| Dose Rate Units | Can be set to display units in Sievert or Rem | |
| Cumulative Dose | Can be set to sum up dose measurements to give the cumulative dose reading from some point in time. | |
| Data Download | Connects to Windows PC for a batch data download of archived data measurements in memory. Memory can be wiped clean for a fresh start of data archiving. | |
| "Always On" Feature | Monitors radiation continually for a comprehensive and accurate data archive in memory that is downloadable. The unit cannot be turned off. | |
| Ticker and Programmable Alert | Audible alert ticker can be turned on and clicks with each pulse generated by the GM tube in the presence of radiation. A programmable alert can be set to sound by the unit on crossing a dose rate threshold. |  |
| Embedded Battery | Embedded (soldered on) Lithium Thionyl Chloride battery, with a typical 10 year operating life at average 20°C and normal usage. There is no need to recharge this battery through its lifetime. To replace send back to factory for a replacement for a small fee. |  |
| Rechargeable Battery | Can be charged via USB cable or external power supply (included) |   |
| Real Time Data Download | Connects to Windows PC and sends the data measurements (pulses) in intervals of 2 seconds | |
| Certifications | Meets all European CE standards as well as US FCC 15 standard | |
| Warranty | 2 Year Manufacturer's Warranty [does not cover damage to GM tube] | |
